FPGA / PLD Modules

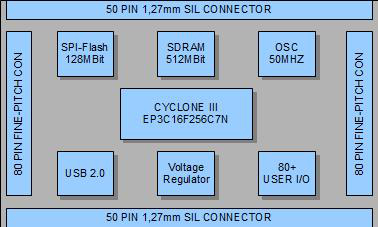

MODULE M-EP3C16F256-F3
• Altera FPGA EP3C16F256C7N
• Dimensions: 72mm x 40mm
• 2 ways of connectivity: SIL discrete or SMD finepitch
• Quarz 50MHZ
• 128MBit SPI-Flash, 512MBit SDRAM
• USB 2.0 Device (FTDI-Chip)
• 3V3 singele Powersupply

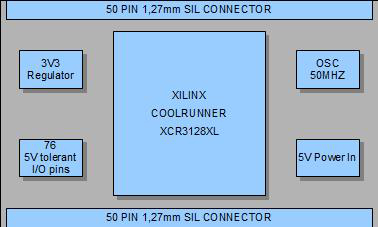

MODULE M-XCR3128XL-F1
• Xilinix CoolRunner XCR3128XL, 128 Macrocell CPLD
• Dimensions: 72mm x 40mm
• SIL discrete connectors
• Quarz 50MHZ
• 5V Powersupply
• 5V tolerant I/O pins
• Low Current consumption
