Base Boards

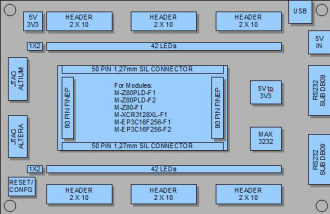

- Formfactor F3: Modul dimensions 72mm x 40mm, 2 x 80 Pin SMD finepitch and 2 x 50 Pin SIL discrete Connector
- For F1 and F2 Formfactor Modules
- M-XCR3128XL-F1, M-Z80PLD-F1, M-Z80PLD-F2, M-Z80-F1,
- M-EP3C16F256-F1, M-EP3C16F256-F2
- Dimensions: 160mm x 100mm
- 2 x RS232, 1 x USB (Mini-USB-B)
- 84 LEDS on I/O pins with LEDs enable jumper
- I/O pins on 6 HEADERS 2X10
- JTAG Altium/Altera Connector
- 5V to 3V3 Regulator, for 5V and 3V3 Modules
- 5V DC in Power Jack DCBU-2.1-LFJTAG Altium/Altera Connector
- 5V to 3V3 Regulator, for 5V and 3V3 Modules
- 5V DC in Power Jack DCBU-2.1-LF
Überschrift
Das Schönste an diesem Text ist, was Sie daraus machen!

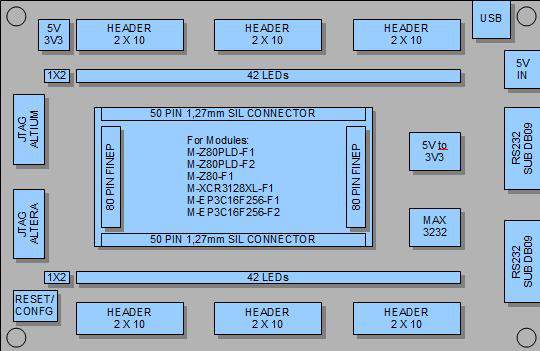

Formfactor F3: Modul dimensions 72mm x 40mm, 2 x 80 Pin SMD finepitch and 2 x 50 Pin SIL discrete Connector
- For F1 and F2 Formfactor Modules
- M-XCR3128XL-F1, M-Z80PLD-F1, M-Z80PLD-F2, M-Z80-F1, M-EP3C16F256-F1, M-EP3C16F256-F2
- Dimensions: 160mm x 100mm
- 2 x RS232, 1 x USB (Mini-USB-B)
- 84 LEDS on I/O pins with LEDs enable jumper
- I/O pins on 6 HEADERS 2X10
- JTAG Altium/Altera Connector
- 5V to 3V3 Regulator, for 5V and 3V3 Modules
- 5V DC in Power Jack DCBU-2.1-LF
Überschrift
Das Schönste an diesem Text ist, was Sie daraus machen!
- Formfactor F3: Modul dimensions 72mm x 40mm, 2 x 80 Pin SMD finepitch and 2 x 50 Pin SIL discrete Connector
- For F1 and F2 Formfactor Modules M-XCR3128XL-F1, M-Z80PLD-F1, M-Z80PLD-F2, M-Z80-F1, M-EP3C16F256-F1, M-EP3C16F256-F2
- Dimensions: 160mm x 100mm
- 2 x RS232, 1 x USB (Mini-USB-B)
- 84 LEDS on I/O pins with LEDs enable jumper
- I/O pins on 6 HEADERS 2X10
- JTAG Altium/Altera Connector
- 5V to 3V3 Regulator, for 5V and 3V3 Modules
- 5V DC in Power Jack DCBU-2.1-LF
